ValidTi FRAME™: The Structural Standard.
Legacy series titanium plates engineered for macroscopic stability in large-span dental restorations.
Restricted Application
RESTRICTED APPLICATION: This material is certified for ISO 13485 Dental Manufacturing ONLY. Not suitable for automotive license frames or industrial plating.
Dimensional & Physical Data
| Property | ValidTi FRAME Spec | Clinical Relevance | |
|---|---|---|---|
| Oxygen (O) Content | < 0.10% | ~ 0.13% | High Toughness; Prevents Fatigue Failure |
| Iron (Fe) Content | < 0.12% | ~ 0.25% | Superior Biocompatibility & Uniformity |
| Raw Material Source | Grade 0A Virgin Sponge | Standard Sponge (Scrap mix) | Aerospace Grade Input; Zero Inclusions |
| Tensile Strength | 920 MPa (Typical) | Resists deformation under masticatory load | |
| Distortion Rate | < 0.05% post-milling | Ensures passive fit on multi-unit implants | |
| Form Factor | Block (up to 200mm) / Disc | Compatible with legacy copy-mill & 5-axis systems |
Framework Warping (Non-Passive Fit)
Risk Addressed
Framework Warping (Non-Passive Fit)
Large-span frameworks are prone to 'spring-back' effect post-milling. ValidTi FRAME series undergoes a proprietary 12-hour annealing cycle to neutralize internal lattice stress, guaranteeing passive fit verification.

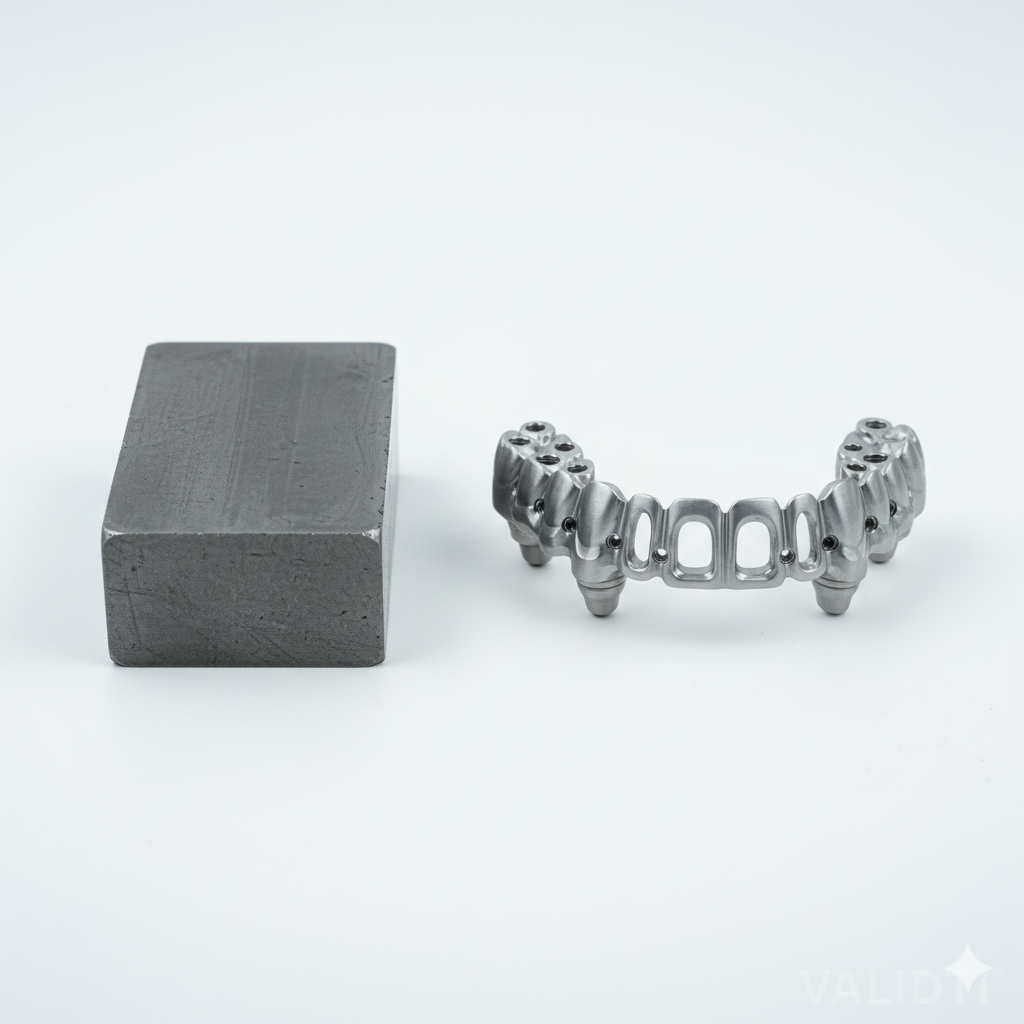

Fig 1. Raw Stock vs. Finished Framework. Zero-distortion workflow. Studio shot of raw rectangular titanium block next to finished milled titanium implant bar.
Compliance & Certification
Proven track record (10+ years of clinical data)
